- องค์ประกอบควบคุมการทำงานตามหลักสรีรศาสตร์และควบคุมได้ 2 มือ
- ระบบไฮดรอลิกที่ปรับปรุงประสิทธิภาพสูงสุดเพื่อลดการสิ้นเปลืองกำลัง
- มีอายุยืนยาวเนื่องจากใช้วัสดุที่แข็งแรงทนทานและมีการแปรรูป
- ไม่ต้องบำรุงรักษาเนื่องจากจุดเชื่อมต่อหยอดสารหล่อลื่นถาวร
- วาล์วลดระดับต่ำแบบพิเศษสำหรับการลดระดับลงอย่างแม่นยำเป็นพิเศษ

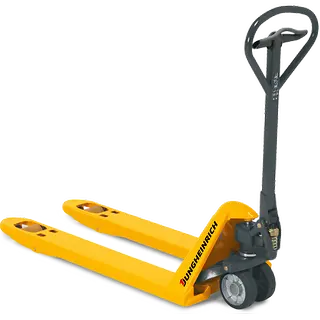

รถลากพาเลท / แฮนด์ลิฟท์ 2.2 ตัน
รถยกลากโยกปั๊ม AM 22 ที่แข็งแรงทนทานและไว้วางใจได้เป็นรถยกคลาสิกของยุงค์ไฮน์ริชและเหมาะอย่างยิ่งสำหรับการขนส่งสินค้าประจำวันในระยะทางสั้น โดยจะจัดการด้วยการใช้องค์ประกอบควบคุมการทำงานตามหลักสรีรศาสตร์หนึ่งองค์ประกอบได้อย่างง่ายมากจนสามารถทำการควบคุมทั้งสองฝั่งด้วยมือเพียงข้างเดียวได้ ระบบไฮดรอลิกที่ปรับอย่างเหมาะสมบวกกับปลอกชุบโครมเมียมของล้อและข้อต่อจะช่วยให้สามารถเคลื่อนย้ายสินค้าบรรทุกได้โดยสิ้นเปลืองกำลังน้อยที่สุด การทำเช่นนี้จะช่วยให้สามารถทำงานตรงตามหลักสรีรศาสตร์โดยเฉพาะและเพิ่มความปลอดภัยในธุรกิจของคุณ จุดเชื่อมต่อที่หยอดสารหล่อลื่นถาวรเช่นเดียวกับระบบไฮดรอลิกปั๊มไม่ต้องบำรุงรักษาที่มีวาล์วลดระดับต่ำแบบพิเศษหนึ่งตัวจะรับประกันความพร้อมในการทำงานสำหรับรถยกลากโยกปั๊มเหล่านี้ นอกจากนั้น เหล็กประสิทธิภาพสูงที่ติดตั้งและโครงยึดคานลากที่เชื่อมยังรับประกันอายุที่ยืนยาวของ AM 22 สำหรับการขนส่งสินค้าอย่างปลอดภัยและง่ายดายในทุกสถานการณ์
ข้อดี
.
คุณสมบัติพิเศษ

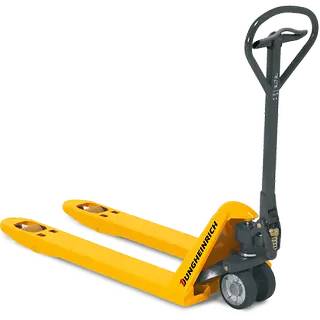

![AM22_[MAM-10245].webp](https://media-live2.prod.scw.jungheinrichcloud.com/resource/image/1960914/portrait_ratio1x1/320/320/b06c9d8681b7fda73df77ed5debd906f/6D927A3048EF84D49FD55CE8AD1730DB/am22-mam-10245-webp.webp)
ภาพรวมรายละเอียดรุ่น
| Model | กำลังโหลด | ยกสูง | ความเร็วในการเดินทาง | ความยาวโดยรวม |
| AM 22, 520x600, N/GN, NH | 2,200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 520x795, N/GN, NH | 2,200 kg | 122 mm | 0 km/h | 1,168 mm |
| AM 22, 520x902, N/GN, NH | 2,200 kg | 122 mm | 0 km/h | 1,275 mm |
| AM 22, 520x950, N/GN, NH | 2,200 kg | 122 mm | 0 km/h | 1,275 mm |
| AM 22, 520x1054, N/GN, NH | 2,200 kg | 122 mm | 0 km/h | 1,427 mm |
| AM 22, 520x1150, N-GN, NH | 2,200 kg | 122 mm | 0 km/h | 1,523 mm |
| AM 22, 520x600, C/GN, NH | 2,200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 520x795, C/GN, NH | 2,200 kg | 122 mm | 0 km/h | 1,168 mm |
| AM 22, 520x902, C/GN, NH | 2,200 kg | 122 mm | 0 km/h | 1,275 mm |
| AM 22, 520x950, C/GN, NH | 2,200 kg | 122 mm | 0 km/h | 1,323 mm |
| AM 22, 520x1054, C/GN, NH | 2,200 kg | 122 mm | 0 km/h | 1,427 mm |
| AM 22, 520x1150, C-GN, NH | 2,200 kg | 122 mm | 0 km/h | 1,523 mm |
| AM 22, 520x1207, C/GN, NH | 2,200 kg | 122 mm | 0 km/h | 1,523 mm |
| AM 22, 520x600, C/GV, NH | 2,200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 520x795, C/GV, NH | 2,200 kg | 122 mm | 0 km/h | 1,165 mm |
| AM 22, 520x902, C/GV, NH | 2,200 kg | 122 mm | 0 km/h | 1,275 mm |
| AM 22, 520x950, C/GV, NH | 2,200 kg | 122 mm | 0 km/h | 1,320 mm |
| AM 22, 520x1054, C/GV, NH | 2,200 kg | 122 mm | 0 km/h | 1,424 mm |
| AM 22, 520x1150, C-GV, NH | 2,200 kg | 122 mm | 0 km/h | 1,520 mm |
| AM 22, 520x1207, C/GV, NH | 2,200 kg | 122 mm | 0 km/h | 1,577 mm |
| AM 22, 520x600, V-GV, NH | 2,200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 520x795, V-GV, NH | 2,200 kg | 122 mm | 0 km/h | 1,323 mm |
| AM 22, 520x902, V-GV, NH | 2,200 kg | 122 mm | 0 km/h | 1,275 mm |
| AM 22, 520x950, V-GV, NH | 2,200 kg | 122 mm | 0 km/h | 1,323 mm |
| AM 22, 520x1054, V-GV, NH | 2,200 kg | 122 mm | 0 km/h | 1,427 mm |
| AM 22, 520x1150, V-GV, NH | 2,200 kg | 122 mm | 0 km/h | 1,523 mm |
| AM 22, 520x1207, V-GV, NH | 2,200 kg | 122 mm | 0 km/h | 1,523 mm |
| AM 22, 520x600, N/BN, NH | 2,200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 520x795, N/BN, NH | 2,200 kg | 122 mm | 0 km/h | 1,168 mm |
| AM 22, 520x902, N/BN, NH | 2,200 kg | 122 mm | 0 km/h | 1,168 mm |
| AM 22, 520x950, N/BN, NH | 2,200 kg | 122 mm | 0 km/h | 1,323 mm |
| AM 22, 520x1054, N/BN, NH | 2,200 kg | 122 mm | 0 km/h | 1,427 mm |
| AM 22, 520x1150, N-BN, NH | 2,200 kg | 122 mm | 0 km/h | 1,523 mm |
| AM 22, 520x1207, N/BN, NH | 2,200 kg | 122 mm | 0 km/h | 1,523 mm |
| AM 22, 520x600, C/BN, NH | 2,200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 520x795, C/BN, NH | 2,200 kg | 122 mm | 0 km/h | 1,168 mm |
| AM 22, 520x902, C/BN, NH | 2,200 kg | 122 mm | 0 km/h | 1,275 mm |
| AM 22, 520x950, C/BN, NH | 2,200 kg | 122 mm | 0 km/h | 1,323 mm |
| AM 22, 520x1054, C/BN, NH | 2,200 kg | 122 mm | 0 km/h | 1,427 mm |
| AM 22, 520x1150, C-BN, NH | 2,200 kg | 122 mm | 0 km/h | 1,520 mm |
| AM 22, 520x1207, C/BN, NH | 2,200 kg | 122 mm | 0 km/h | 1,523 mm |
| AM 22, 520x600, C/BV, NH | 2,200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 520x795, C/BV, NH | 2,200 kg | 122 mm | 0 km/h | 1,168 mm |
| AM 22, 520x902, C/BV, NH | 2,200 kg | 122 mm | 0 km/h | 1,275 mm |
| AM 22, 520x950, C/BV, NH | 2,200 kg | 122 mm | 0 km/h | 1,323 mm |
| AM 22, 520x1054, C/BV, NH | 2,200 kg | 122 mm | 0 km/h | 1,427 mm |
| AM 22, 520x1150, C-BV, NH | 2,200 kg | 122 mm | 0 km/h | 1,523 mm |
| AM 22, 520x1207, C/BV, NH | 2,200 kg | 122 mm | 0 km/h | 1,523 mm |
| AM 22, 520x1360, C/BV, NH | 2,200 kg | 122 mm | 0 km/h | 1,733 mm |
| AM 22, 520x1600, C/BV, NH | 1,500 kg | 122 mm | 0 km/h | 1,973 mm |
| AM 22, 520x1900, C/BV, NH | 1,000 kg | 122 mm | 0 km/h | 2,273 mm |
| AM 22, 520x2400, C/BV, NH | 500 kg | 122 mm | 0 km/h | 2,773 mm |
| AM 22, 520x600, V/BV, NH | 2,200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 520x795, V/BV, NH | 2,200 kg | 122 mm | 0 km/h | 1,168 mm |
| AM 22, 520x902, V/BV, NH | 2,200 kg | 122 mm | 0 km/h | 1,275 mm |
| AM 22, 520x950, V/BV, NH | 2,200 kg | 122 mm | 0 km/h | 1,323 mm |
| AM 22, 520x1054, V/BV, NH | 2,200 kg | 122 mm | 0 km/h | 1,427 mm |
| AM 22, 520x1150, V-BV, NH | 2,200 kg | 122 mm | 0 km/h | 1,523 mm |
| AM 22, 520x1207, V/BV, NH | 2,200 kg | 122 mm | 0 km/h | 1,523 mm |
| AM 2200, 680x1207, N-GN, NH | 2,200 kg | 122 mm | 0 km/h | 1,523 mm |
| AM 22, 680x600, N/GN, NH | 2,200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 680x795, N/GN, NH | 2,200 kg | 122 mm | 0 km/h | 1,168 mm |
| AM 22, 680x902, N/GN, NH | 2,200 kg | 122 mm | 0 km/h | 1,275 mm |
| AM 22, 680x950, N-GN, NH | 2,200 kg | 122 mm | 0 km/h | 1,323 mm |
| AM 22, 680x1054, N/GN, NH | 2,200 kg | 122 mm | 0 km/h | 1,427 mm |
| AM 22, 680x1150, N/GN, NH | 2,200 kg | 122 mm | 0 km/h | 1,523 mm |
| AM 22, 680x1207, N/GN, NH | 2,200 kg | 122 mm | 0 km/h | 1,523 mm |
| AM 22, 680x600, C/GN, NH | 2,200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 680x795, C/GN, NH | 2,200 kg | 122 mm | 0 km/h | 1,323 mm |
| AM 22, 680x902, C/GN, NH | 2,200 kg | 122 mm | 0 km/h | 1,275 mm |
| AM 22, 680x950, C/GN, NH | 2,200 kg | 122 mm | 0 km/h | 1,323 mm |
| AM 22, 680x1054, C/GN, NH | 2,200 kg | 122 mm | 0 km/h | 1,427 mm |
| AM 22, 680x1150, C/GN, NH | 2,200 kg | 122 mm | 0 km/h | 1,523 mm |
| AM 22, 680x1207, C/GN, NH | 2,200 kg | 122 mm | 0 km/h | 1,523 mm |
| AM 22, 680x600, C/GV, NH | 2,200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 680x795, C/GV, NH | 2,200 kg | 122 mm | 0 km/h | 1,168 mm |
| AM 22, 680x902, C/GV, NH | 2,200 kg | 122 mm | 0 km/h | 1,275 mm |
| AM 22, 680x950, C/GV, NH | 2,200 kg | 122 mm | 0 km/h | 1,323 mm |
| AM 22, 680x1054, C/GV, NH | 2,200 kg | 122 mm | 0 km/h | 1,427 mm |
| AM 22, 680x1150, C/GV, NH | 2,200 kg | 122 mm | 0 km/h | 1,523 mm |
| AM 22, 680x1207, C/GV, NH | 2,200 kg | 122 mm | 0 km/h | 1,523 mm |
| AM 22, 680x600, V-GV, NH | 2,200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 680x795, V-GV, NH | 2,200 kg | 122 mm | 0 km/h | 1,168 mm |
| AM 22, 680x902, V-GV, NH | 2,200 kg | 122 mm | 0 km/h | 1,275 mm |
| AM 22, 680x950, V-GV, NH | 2,200 kg | 122 mm | 0 km/h | 1,323 mm |
| AM 22, 680x1054, V-GV, NH | 2,200 kg | 122 mm | 0 km/h | 1,427 mm |
| AM 22, 680x1150, V-GV, NH | 2,200 kg | 122 mm | 0 km/h | 1,523 mm |
| AM 22, 680x1207, V-GV, NH | 2,200 kg | 122 mm | 0 km/h | 1,523 mm |
| AM 22, 680x600, N/BN, NH | 2,200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 680x795, N/BN, NH | 2,200 kg | 122 mm | 0 km/h | 1,168 mm |
| AM 22, 680x902, N/BN, NH | 2,200 kg | 122 mm | 0 km/h | 1,275 mm |
| AM 22, 680x950, N/BN, NH | 2,200 kg | 122 mm | 0 km/h | 1,323 mm |
| AM 22, 680x1054, N/BN, NH | 2,200 kg | 122 mm | 0 km/h | 1,427 mm |
| AM 22, 680x1150, N/BN, NH | 2,200 kg | 122 mm | 0 km/h | 1,523 mm |
| AM 22, 680x1207, N/BN, NH | 2,200 kg | 122 mm | 0 km/h | 1,523 mm |
| AM 22, 680x600, C/BN, NH | 2,200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 680x795, C/BN, NH | 2,200 kg | 122 mm | 0 km/h | 1,168 mm |
| AM 22, 680x902, C/BN, NH | 2,200 kg | 122 mm | 0 km/h | 1,275 mm |
| AM 22, 680x950, C/BN, NH | 2,200 kg | 122 mm | 0 km/h | 1,323 mm |
| AM 22, 680x1054, C/BN, NH | 2,200 kg | 122 mm | 0 km/h | 1,427 mm |
| AM 22, 680x1150, C/BN, NH | 2,200 kg | 122 mm | 0 km/h | 1,523 mm |
| AM 22, 680x1207, C/BN, NH | 2,200 kg | 122 mm | 0 km/h | 1,523 mm |
| AM 22, 680x600, C/BV, NH | 2,200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 680x795, C/BV, NH | 2,200 kg | 122 mm | 0 km/h | 1,323 mm |
| AM 22, 680x902, C/BV, NH | 2,200 kg | 122 mm | 0 km/h | 1,275 mm |
| AM 22, 680x950, C/BV, NH | 2,200 kg | 122 mm | 0 km/h | 1,323 mm |
| AM 22, 680x1054, C/BV, NH | 2,200 kg | 122 mm | 0 km/h | 1,275 mm |
| AM 22, 680x1150, C/BV, NH | 2,200 kg | 122 mm | 0 km/h | 1,523 mm |
| AM 22, 680x1207, C/BV, NH | 2,200 kg | 122 mm | 0 km/h | 1,523 mm |
| AM 22, 680x1360, C/BV, NH | 2,200 kg | 122 mm | 0 km/h | 1,733 mm |
| AM 22, 680x1600, C/BV, NH | 1,700 kg | 122 mm | 0 km/h | 1,973 mm |
| AM 22, 680x1900, C/BV, NH | 1,200 kg | 122 mm | 0 km/h | 2,773 mm |
| AM 22, 680x600, V/BV, NH | 2,200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 680x795, V/BV, NH | 2,200 kg | 122 mm | 0 km/h | 1,168 mm |
| AM 22, 680x902, V/BV, NH | 2,200 kg | 122 mm | 0 km/h | 1,275 mm |
| AM 22, 680x950, V/BV, NH | 2,200 kg | 122 mm | 0 km/h | 1,323 mm |
| AM 22, 680x1054, V/BV, NH | 2,200 kg | 122 mm | 0 km/h | 1,427 mm |
| AM 22, 680x1150, V/BV, NH | 2,200 kg | 122 mm | 0 km/h | 1,523 mm |
| AM 22, 680x1207, V/BV, NH | 2,200 kg | 122 mm | 0 km/h | 1,523 mm |
| AM 22, 520x600, N-GN, SH | 2,200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 520x795, N-GN, SH | 2,200 kg | 122 mm | 0 km/h | 1,168 mm |
| AM 22, 520x902, N-GN, SH | 2,200 kg | 122 mm | 0 km/h | 1,275 mm |
| AM 22, 520x950, N-GN, SH | 2,200 kg | 122 mm | 0 km/h | 1,323 mm |
| AM 22, 520x1054, N-GN, SH | 2,200 kg | 122 mm | 0 km/h | 1,427 mm |
| AM 22, 520x1150, N-GN, SH | 2,200 kg | 122 mm | 0 km/h | 1,523 mm |
| AM 22, 520x1207, N-GN, SH | 2,200 kg | 122 mm | 0 km/h | 1,523 mm |
| AM 220, 520x600, C-GN, SH | 2,200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 520x795, C-GN, SH | 2,200 kg | 122 mm | 0 km/h | 1,168 mm |
| AM 22, 520x902, C-GN, SH | 2,200 kg | 122 mm | 0 km/h | 1,275 mm |
| AM 22, 520x950, C-GN, SH | 2,200 kg | 122 mm | 0 km/h | 1,323 mm |
| AM 22, 520x1054, C-GN, SH | 2,200 kg | 122 mm | 0 km/h | 1,427 mm |
| AM 22, 520x1150, C-GN, SH | 2,200 kg | 122 mm | 0 km/h | 1,523 mm |
| AM 22, 520x1207, C-GN, SH | 2,200 kg | 122 mm | 0 km/h | 1,523 mm |
| AM 22, 520x600, C-GV, SH | 2,200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 520x795, C-GV, SH | 2,200 kg | 122 mm | 0 km/h | 1,168 mm |
| AM 22, 520x902, C-GV, SH | 2,200 kg | 122 mm | 0 km/h | 1,275 mm |
| AM 22, 520x950, C-GV, SH | 2,200 kg | 122 mm | 0 km/h | 1,323 mm |
| AM 22, 520x1054, C-GV, SH | 2,200 kg | 122 mm | 0 km/h | 1,427 mm |
| AM 22, 520x1150, C-GV, SH | 2,200 kg | 122 mm | 0 km/h | 1,523 mm |
| AM 22, 520x1207, C-GV, SH | 2,200 kg | 122 mm | 0 km/h | 1,523 mm |
| AM 22, 520x600, V-GV, SH | 2,200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 520x795, V-GV, SH | 2,200 kg | 122 mm | 0 km/h | 1,168 mm |
| AM 22, 520x902, V-GV, SH | 2,200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 520x950, V-GV, SH | 2,200 kg | 122 mm | 0 km/h | 1,323 mm |
| AM 22, 520x1054, V-GV, SH | 2,200 kg | 122 mm | 0 km/h | 1,427 mm |
| AM 22, 520x1150, V-GV, SH | 2,200 kg | 122 mm | 0 km/h | 1,523 mm |
| AM 22, 520x1207, V-GV, SH | 2,200 kg | 122 mm | 0 km/h | 1,523 mm |
| AM 22, 520x600, N-BN, SH | 2,200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 520x795, N-BN, SH | 2,200 kg | 122 mm | 0 km/h | 1,168 mm |
| AM 22, 520x902, N-BN, SH | 2,200 kg | 122 mm | 0 km/h | 1,275 mm |
| AM 22, 520x950, N-BN, SH | 2,200 kg | 122 mm | 0 km/h | 1,323 mm |
| AM 22, 520x1054, N-BN, SH | 2,200 kg | 122 mm | 0 km/h | 1,427 mm |
| AM 22, 520x1150, N-BN, SH | 2,200 kg | 122 mm | 0 km/h | 1,523 mm |
| AM 22, 520x1207, N-BN, SH | 2,200 kg | 122 mm | 0 km/h | 1,523 mm |
| AM 22, 520x600, C-BN, SH | 2,200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 520x795, C-BN, SH | 2,200 kg | 122 mm | 0 km/h | 1,168 mm |
| AM 22, 520x902, C-BN, SH | 2,200 kg | 122 mm | 0 km/h | 1,275 mm |
| AM 22, 520x950, C-BN, SH | 2,200 kg | 122 mm | 0 km/h | 1,323 mm |
| AM 22, 520x1054, C-BN, SH | 2,200 kg | 122 mm | 0 km/h | 1,427 mm |
| AM 22, 520x1150, C-BN, SH | 2,200 kg | 122 mm | 0 km/h | 1,520 mm |
| AM 22, 520x1207, C-BN, SH | 2,200 kg | 122 mm | 0 km/h | 1,523 mm |
| AM 22, 520x600, C-BV, SH | 2,200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 520x795, C-BV, SH | 2,200 kg | 122 mm | 0 km/h | 1,168 mm |
| AM 22, 520x902, C-BV, SH | 2,200 kg | 122 mm | 0 km/h | 1,275 mm |
| AM 22, 520x950, C-BV, SH | 2,200 kg | 122 mm | 0 km/h | 1,323 mm |
| AM 22, 520x1054, C-BV, SH | 2,200 kg | 122 mm | 0 km/h | 1,427 mm |
| AM 22, 520x1150, C-BV, SH | 2,200 kg | 122 mm | 0 km/h | 1,523 mm |
| AM 22, 520x1207, C-BV, SH | 2,200 kg | 122 mm | 0 km/h | 1,523 mm |
| AM 22, 520x1360, C-BV, SH | 2,200 kg | 122 mm | 0 km/h | 1,733 mm |
| AM 22, 520x1600, C-BV, SH | 1,500 kg | 122 mm | 0 km/h | 1,973 mm |
| AM 220, 520x1900, C-BV, SH | 1,000 kg | 122 mm | 0 km/h | 2,273 mm |
| AM 22, 520x2400, C-BV, SH | 500 kg | 122 mm | 0 km/h | 2,773 mm |
| AM 22, 520x600, V-BV, SH | 2,200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 520x795, V-BV, SH | 2,200 kg | 122 mm | 0 km/h | 1,168 mm |
| AM 22, 520x902, V-BV, SH | 2,200 kg | 122 mm | 0 km/h | 1,275 mm |
| AM 22, 520x950, V-BV, SH | 2,200 kg | 122 mm | 0 km/h | 1,323 mm |
| AM 22, 520x1054, V-BV, SH | 2,200 kg | 122 mm | 0 km/h | 1,427 mm |
| AM 22, 520x1150, V-BV, SH | 2,200 kg | 122 mm | 0 km/h | 1,523 mm |
| AM 22, 520x1207, V-BV, SH | 2,200 kg | 122 mm | 0 km/h | 1,523 mm |
| AM 22, 680x600, N-GN, SH | 2,200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 680x795, N-GN, SH | 2,200 kg | 122 mm | 0 km/h | 1,168 mm |
| AM 22, 680x902, N-GN, SH | 2,200 kg | 122 mm | 0 km/h | 1,275 mm |
| AM 22, 680x950, N-GN, SH | 2,200 kg | 122 mm | 0 km/h | 1,323 mm |
| AM 22, 680x1054, N-GN, SH | 2,200 kg | 122 mm | 0 km/h | 1,427 mm |
| AM 22, 680x1150, N-GN, SH | 2,200 kg | 122 mm | 0 km/h | 1,523 mm |
| AM 22, 680x1207, N-GN, SH | 2,200 kg | 122 mm | 0 km/h | 1,523 mm |
| AM 22, 680x600, C-GN, SH | 2,200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 680x795, C-GN, SH | 2,200 kg | 122 mm | 0 km/h | 1,168 mm |
| AM 22, 680x902, C-GN, SH | 2,200 kg | 122 mm | 0 km/h | 1,275 mm |
| AM 22, 680x950, C-GN, SH | 2,200 kg | 122 mm | 0 km/h | 1,323 mm |
| AM 22, 680x1054, C-GN, SH | 2,200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 680x1150, C-GN, SH | 2,200 kg | 122 mm | 0 km/h | 1,523 mm |
| AM 22, 680x1207, C-GN, SH | 2,200 kg | 122 mm | 0 km/h | 1,523 mm |
| AM 22, 680x600, C-GV, SH | 2,200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 680x795, C-GV, SH | 2,200 kg | 122 mm | 0 km/h | 1,168 mm |
| AM 22, 680x902, C-GV, SH | 2,200 kg | 122 mm | 0 km/h | 973 mm |
| AM 220, 680x950, C-GV, SH | 2,200 kg | 122 mm | 0 km/h | 1,323 mm |
| AM 22, 680x1054, C-GV, SH | 2,200 kg | 122 mm | 0 km/h | 1,427 mm |
| AM 22, 680x1150, C-GV, SH | 2,200 kg | 122 mm | 0 km/h | 1,523 mm |
| AM 22, 680x1207, C-GV, SH | 2,200 kg | 122 mm | 0 km/h | 1,523 mm |
| AM 22, 680x600, V-GV, SH | 2,200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 680x795, V-GV, SH | 2,200 kg | 122 mm | 0 km/h | 1,168 mm |
| AM 22, 680x902, V-GV, SH | 2,200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 680x950, V-GV, SH | 2,200 kg | 122 mm | 0 km/h | 1,323 mm |
| AM 22, 680x1054, V-GV, SH | 2,200 kg | 122 mm | 0 km/h | 1,427 mm |
| AM 22, 680x1150, V-GV, SH | 2,200 kg | 122 mm | 0 km/h | 1,523 mm |
| AM 22, 680x1207, V-GV, SH | 2,200 kg | 122 mm | 0 km/h | 1,523 mm |
| AM 22, 680x600, N-BN, SH | 2,200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 680x795, N-BN, SH | 2,200 kg | 122 mm | 0 km/h | 1,168 mm |
| AM 22, 680x902, N-BN, SH | 2,200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 680x950, N-BN, SH | 2,200 kg | 122 mm | 0 km/h | 1,323 mm |
| AM 22, 680x1054, N-BN, SH | 2,200 kg | 122 mm | 0 km/h | 1,427 mm |
| AM 22, 680x1150, N-BN, SH | 2,200 kg | 122 mm | 0 km/h | 1,523 mm |
| AM 22, 680x1207, N-BN, SH | 2,200 kg | 122 mm | 0 km/h | 1,523 mm |
| AM 22, 680x600, C-BN, SH | 2,200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 680x795, C-BN, SH | 2,200 kg | 122 mm | 0 km/h | 1,168 mm |
| AM 22, 680x902, C-BN, SH | 2,200 kg | 122 mm | 0 km/h | 1,275 mm |
| AM 22, 680x950, C-BN, SH | 2,200 kg | 122 mm | 0 km/h | 1,323 mm |
| AM 22, 680x1054, C-BN, SH | 2,200 kg | 122 mm | 0 km/h | 1,427 mm |
| AM 22, 680x1150, C-BN, SH | 2,200 kg | 122 mm | 0 km/h | 1,523 mm |
| AM 22, 680x1207, C-BN, SH | 2,200 kg | 122 mm | 0 km/h | 1,523 mm |
| AM 22, 680x600, C-BV, SH | 2,200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 680x795, C-BV, SH | 2,200 kg | 122 mm | 0 km/h | 1,168 mm |
| AM 22, 680x902, C-BV, SH | 2,200 kg | 122 mm | 0 km/h | 1,275 mm |
| AM 22, 680x950, C-BV, SH | 2,200 kg | 122 mm | 0 km/h | 1,323 mm |
| AM 22, 680x1054, C-BV, SH | 2,200 kg | 122 mm | 0 km/h | 1,427 mm |
| AM 22, 680x1150, C-BV, SH | 2,200 kg | 122 mm | 0 km/h | 1,523 mm |
| AM 22, 680x1207, C-BV, SH | 2,200 kg | 122 mm | 0 km/h | 1,523 mm |
| AM 22, 680x1360, C-BV, SH | 2,200 kg | 122 mm | 0 km/h | 1,733 mm |
| AM 22, 680x1600, C-BV, SH | 1,700 kg | 122 mm | 0 km/h | 1,973 mm |
| AM 22, 680x1900, C-BV, SH | 1,200 kg | 122 mm | 0 km/h | 2,273 mm |
| AM 22, 680x600, V-BV, SH | 2,200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 680x795, V-BV, SH | 2,200 kg | 122 mm | 0 km/h | 1,168 mm |
| AM 22, 680x902, V-BV, SH | 2,200 kg | 122 mm | 0 km/h | 1,275 mm |
| AM 22, 680x950, V-BV, SH | 2,200 kg | 122 mm | 0 km/h | 1,323 mm |
| AM 22, 680x1054, V-BV, SH | 2,200 kg | 122 mm | 0 km/h | 1,427 mm |
| AM 22, 680x1150, V-BV, SH | 2,200 kg | 122 mm | 0 km/h | 1,523 mm |
| AM 22, 680x1207, V-BV, SH | 2,200 kg | 122 mm | 0 km/h | 1,523 mm |
