Electric pedestrian pallet truck 2.0t

540 mm
2000 kg

Additional mast lift for ergonomic work
Powerful and maintenance-free 3-phase AC motors
Compact and manoeuvrable due its short chassis length
Full manoeuvrability with vertical tiller
Strong acceleration and high speed

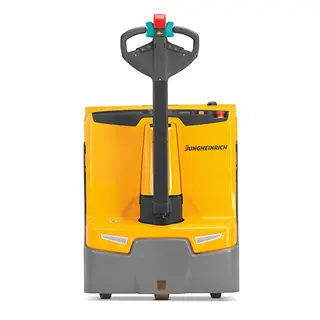

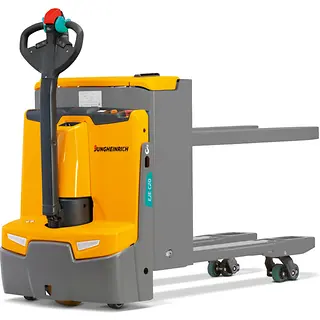

EJE C20

The agile and ergonomic EJE C20 electric pallet truck is the flexible companion in scenarios where goods are moved and picked. In addition to the support arm lift, the truck has an integrated simplex mast that can lift goods up to 752 mm. This places goods at an ergonomic reach height, allowing half pallets to be removed quickly and efficiently. Consequently, this electric pedestrian pallet truck is the ideal truck for retail. Especially when goods must be moved quickly and efficiently, the EJE C20 offers high speed and powerful acceleration with low energy consumption. Safety is also a top priority for the EJE C20. The low-mounted tiller ensures that a safe distance is maintained between the truck and the operator. And when space is particularly tight, the slow travel button enables safe manoeuvring with an upright tiller.

Li-Ion

No worries. No compromise.

The Jungheinrich Li-ion Guarantee Plus offers up to 5 years of reliable performance for our high-quality lithium-ion batteries. Confident in their high performance and long service life, we also guarantee a hassle-free switch back to your original technology within 6 months of delivery.

Benefits

Connected Trucks

Use the data from your trucks to save time, energy and money and increase efficiency. Our Telematics box (ex factory) provides you with a free fleet management starter package that can be flexibly expanded with various hardware and software components.

Features

Efficient 3-phase AC technology

High efficiency levels with excellent energy management.
Powerful acceleration.
Continuous smooth control of travel speed via the travel switch.
Rapid direction change.
No carbon brushes – maintenance-free drive motor.
2-year warranty on driving motor.

Professional battery management

Battery capacities of up to 250 Ah guarantee long operating times.
2 PzB 200 Ah batteries for vertical battery exchange.
Lateral battery exchange (optional) for 2 PzB 250 Ah batteries.
Built-in charger (24 V/30 A for wet cell batteries and maintenance-free batteries) for easy charging at any power outlet (optional).

Safe pallet handling

Side entry into empty euro or closed pallets thanks to enclosed skids on both fork tips.
To remove a half pallet from a Euro pallet.
Semi / quarter pallets from Euro pallets (optional).

Optimum cornering

Sprung and cushioned support wheels – linked via the ProTracLink torsion bar – distribute equalising forces dependent on travel conditions.
Perfect for loading and unloading HGV as well as the work on ramps.
Evenly over all wheels during straight-line travel.
Concentrated on the outer support wheel when cornering.

Lower maintenance costs

Maintenance-free 3-phase AC drive motor without carbon brushes.
Easy access to all components through one-piece front cover secured by only two screws.
Excellent protection against dust and humidity through IP 54 enclosure of controller and plugs.
Reduced support wheel wear when approaching ramps at an angle thanks to level equalisation.

Always informed

Adjustable travel parameters via CanDis and CanCode (optional).
CanDis information display (optional) with additional service hour display and service data storage.
Discharge indicator (3-colour LED) with lift cutout.
Activation of truck via PIN and selection of 3 travel programs via CanCode (optional).

Impulse control

The speed set by the drive switch is maintained under all travel conditions – even on gradients / descents.
Automatic braking in the event of unintentional rolling on ramps.
Individually adjustable travel parameters (acceleration, top speed, motor brake) facilitate optimum adjustment to suit any requirement.
3 different travel programs can be selected (optional).
Energy recovery due to regenerative braking when decelerating.
Very low noise level during travel.

Additional features
