Stage ETV 110_112

Reach truck 1.0 - 1.2t

  • 4,550 - 7,100 mm
  • 1,000 - 1,200 kg
  • Reach mast technology saves space
  • Optimum energy efficiency
  • Spacious operator seat
  • Sensitive operation
  • Perfect adaptability

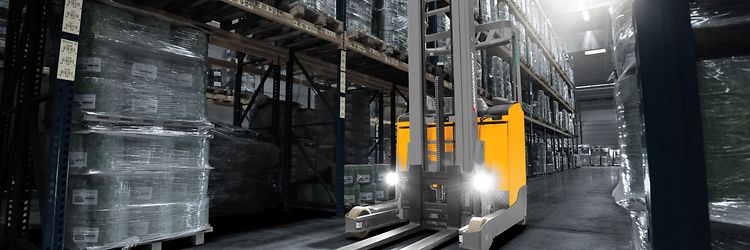

ETV 110/ 112

Compact design, high performance figures, innovative technology and optimum ergonomic working conditions – these are the strengths of our Jungheinrich 110/112 reach trucks. Whether for handling pallets or operating in drive-through and drive-in racking, working in extremely narrow areas, low clearances or for single shift or multishift applications: The ETV 110/112 reach trucks offer the right solution for any application.

The main advantages of this series are:

  • Space saving with narrow aisle widths from 2664 mm. Thanks to their slim support arms, the ETV 110/112 trucks can pull a Euro pallet back between the support arms, despite their compact outer width of only 1120 mm. This creates more room during operation with oncoming traffic, in block warehouses or in drive-in racking.
  • High throughput combined with low energy consumption. This is achieved due to the very latest drive and control technology.

Advanced ergonomics and technology promote productivity:

  • Generous cab dimensions and outstanding visibility, both during travel and when stacking and retrieving.
  • Automotive layout of the pedals.
  • Automatic speed reduction when cornering with curveCONTROL.
  • 180° and 360° steering: Operator can chose between minimum turning radius and fast change in travel direction.
  • soloPILOT control lever: sensitive stacking even at high lift heights.

The right configuration for your needs: An extensive range of options including a wide variety of assistance systems and battery versions from 310 to 620 Ah ensures the truck can be adapted to suit any application.


Model Overview

Load Capacity
Lift (h3)
ETV 1101000 kg7100 mm11 km/h2321 mm48 V
ETV 1121200 kg7100 mm11 km/h2321 mm48 V
