Stage EJC B12B14_B16_B20

Pedestrian stacker 1.2 - 2.0t

  • 2,500 - 5,350 mm
  • 1,200 - 2,000 kg
  • Powerful, maintenance-free 3-phase AC drive motor
  • Lifting enclosed pallets or transverse pallets
  • Sensitive lifting and lowering
  • Crawl speed with tiller vertical
  • Flexible adjustment to a wide variety of applications

EJC B12/ B14/ B16/ B20

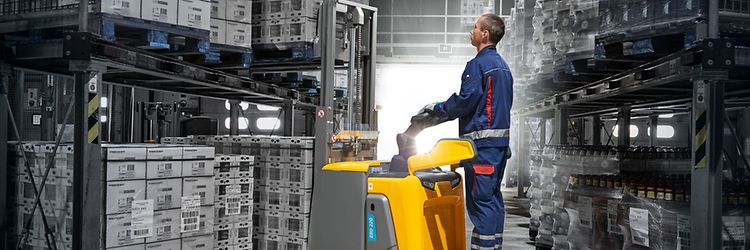

The EJC B12/B14/B16/B20 pedestrian stacker is mainly designed for the flexible handling of special loads. With its laterally offset support arms and forged forks that can be lowered to the floor, the truck can lift loads by entering the load unit from below. This enables transverse Euro pallets or closed pallets to be picked up in a similar way to a counterbalanced forklift truck.

The electronically controlled, powerful lift motor ensures smooth and quiet lifting and lowering of the load. This enables lift heights of up to 5350 mm (EJC B14) to be reached. From smooth depositing, rapid lifting and lowering or precisely approaching the racking – the operator has everything under control at all times.

The support arms are available in different versions so they can be adjusted to different loads and pallet sizes. 4-point suspension and the widened solid steel support arms ensure excellent stability and high residual capacities.

The low-mounted, long tiller ensures that a large safety distance is maintained between the operator and truck. Simply pressing the crawl speed button is sufficient to manoeuvre the EJC B with the tiller in an upright position. The side mounting of the tiller always provides unobstructed visibility towards the load. Electric tiller steering (optional for EJC B14/B16/B20) provides low steering forces and consequently fatigue-free steering, especially when driving with the tiller in a vertical position.

An optional built-in charger allows the integrated battery to be easily and reliably charged at any mains socket. In addition, the EJC B12/B14/B16 can be equipped with a innovative lithium-ion battery up to 360 Ah. The rapid and boost charge features facilitate flexible usage even in multi-shift operation. Low maintenance and the longer service life reduce costs.


Content Li-Ionen + 5 Jahre Logo
No worries. No compromise.

With the Jungheinrich Li-ion Guarantee Plus, we give you a long-term performance promise of up to 5 years on our high-quality lithium-ion batteries, so you can completely concentrate on your tasks without worrying.

Li-Ionen Zufriedenheitsgarantie Neu
100 % satisfaction. Guaranteed.

We are convinced this decision is right for you. That‘s why we guarantee that you can easily and quickly switch back to the original technology at any time within the first 6 months – without stating reasons.


Model Overview

Load Capacity
Lift (h3)
EJC B121200 kg5350 mm6 km/h1955 mm24 V
EJC B141400 kg5350 mm6 km/h2060 mm24 V
EJC B161600 kg5350 mm6 km/h2060 mm24 V
EJC B202000 kg5350 mm6 km/h2060 mm24 V
