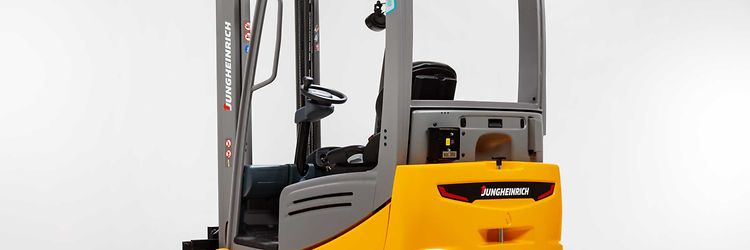

What are the parts of a forklift called?
Forklifts or electric forklifts are essential tools used across numerous industries to efficiently move materials. As operators, understanding the components and their specific functions is crucial. Not only enhances operational efficiency but also contributes to a safer working environment.
Jungheinrich Forklift Components and Their Functions: A Guide for Operators
As a forklift operator, a deep understanding of your machine's components and their functions is crucial for safe and efficient operation. This knowledge is not only vital for daily tasks but also for identifying potential issues, understanding the root cause of an accident, and communicating effectively with maintenance teams. This article provides an overview of essential forklift components, with a focus on Jungheinrich trucks, to help you become a more knowledgeable and effective operator.

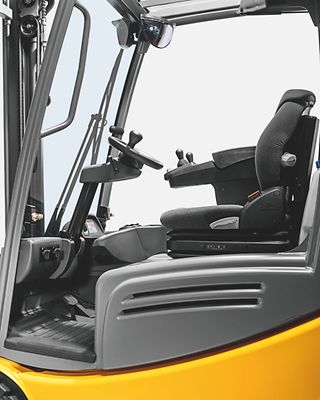

1. Driver Cabin
The forklift driver's cabin is the operator's workspace and a critical component for ensuring both comfort and safety during all operating hours. Jungheinrich, a leader in material handling, places a strong emphasis on ergonomic design, creating cabins that are tailored for long hours of use and a wide range of working conditions. Operating a forklift for an entire shift can be physically demanding. Poorly designed cabins can lead to operator fatigue, musculoskeletal injuries (especially to the back, neck, and shoulders), and decreased focus, all of which increase the risk of accidents. Jungheinrich addresses these issues by incorporating ergonomic theory into its cabin design, which combines the driver's seat, controls, and display monitor in a way that prioritizes the operator's well-being.

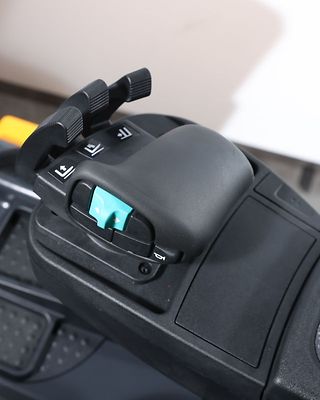

2. Control Lever
The control levers are arguably the most direct interface between the operator and the forklift's hydraulic system. They are the primary components for executing lifting, tilting, and other key functions with precision. Understanding each lever's role is fundamental to operating the forklift safely and efficiently.
- Lift/Lower Lever: This lever controls the vertical movement of the forks. Pushing the lever forward typically lowers the forks, while pulling it backward raises them. The speed of the lift and lower action is directly related to how far the lever is pushed or pulled.
- Tilt Lever: The tilt lever controls the forward and backward tilt of the mast. Pushing the lever forward tilts the mast and forks forward, which is useful for picking up a load. Pulling the lever backward tilts the mast backward, a crucial action for stabilizing the load during transport, as it helps prevent the load from sliding off the forks.
- Side Shift Lever (Optional): This lever controls the lateral movement of the forks and carriage. Pushing the lever to the left shifts the forks to the left and pushing it to the right shifts them to the right. The side shifter is an invaluable tool for precision. It allows the operator to fine-tune the fork position to align with a pallet without having to reposition the entire forklift, which saves time, reduces maneuvering, and prevents damage to the load or racking.
Control Options

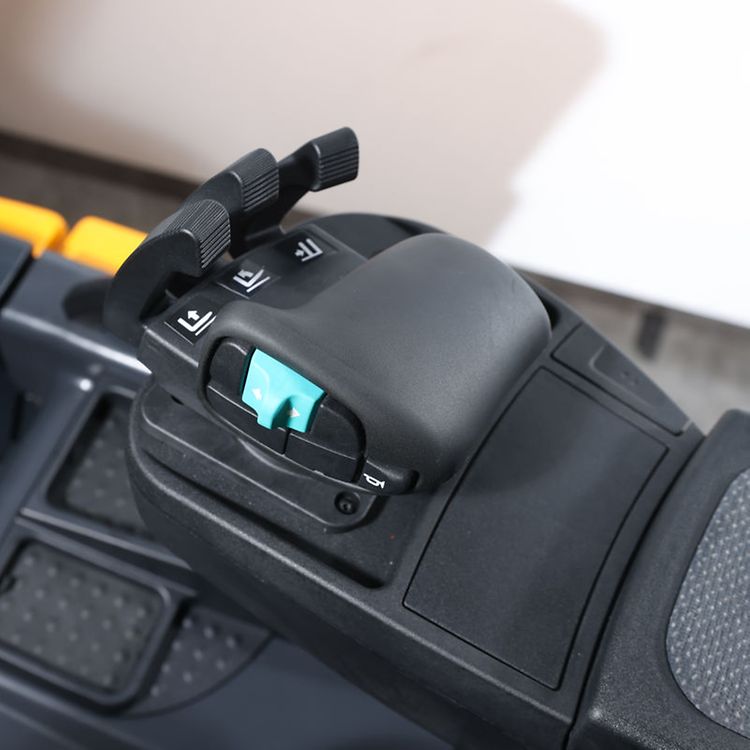

The SoloPilot is a fingertip-controlled lever system. It's designed for maximum precision with minimal hand movement.

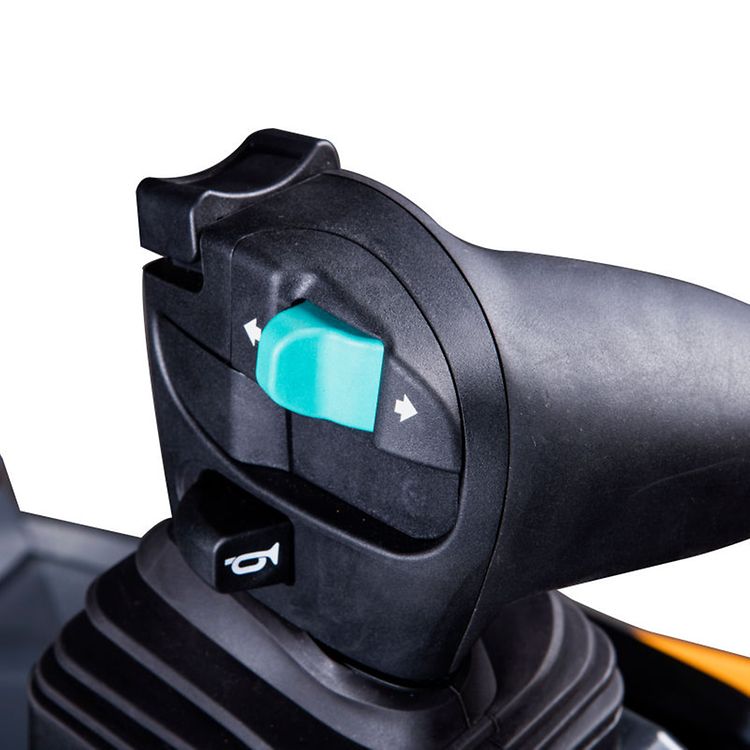

The MultiPilot is a joystick-based control system. It is designed for maximum speed and efficiency by consolidating multiple functions into a single controller.

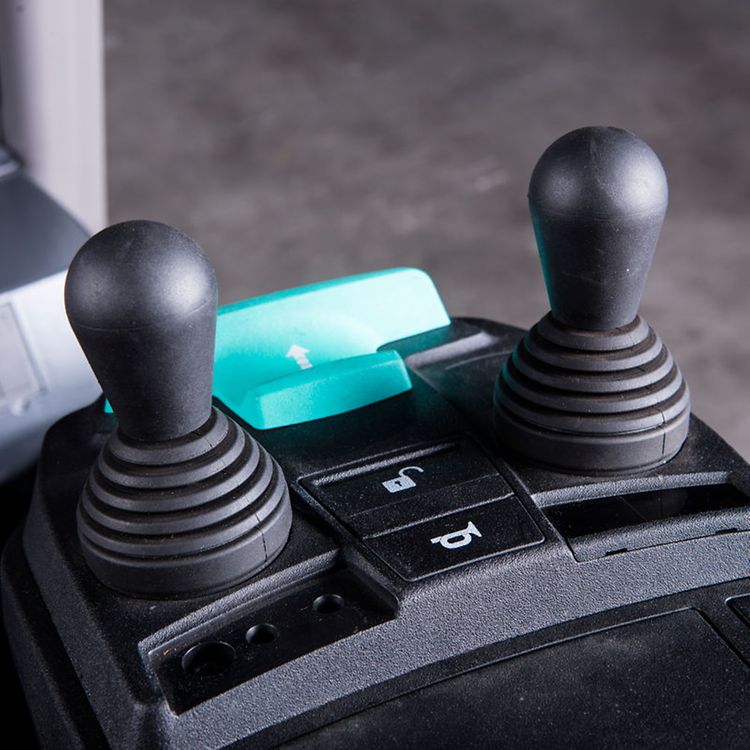

The DuoPilot is a two-lever control system. It is a bridge between the traditional separate levers and a single joystick, offering a balance of precision and function

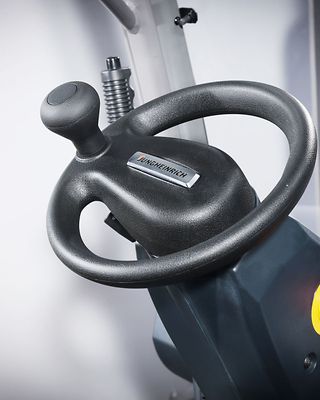

3. Steering Wheel
The steering wheel is the primary control for directing the forklift's movement. Located within the driver's cabin, its function is straightforward: to allow the operator to change the direction of travel. In a typical rear-wheel-steer forklift, turning the steering wheel causes the back wheels to pivot, which allows for tight turns and high maneuverability in narrow aisles and congested spaces.

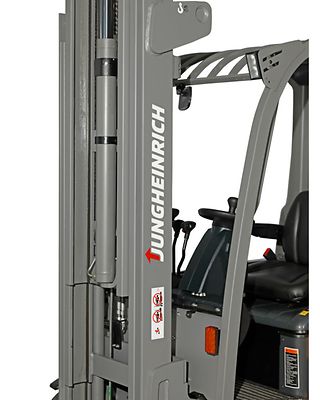

4. Mast
The mast is a crucial vertical assembly located at the front of the forklift, responsible for lifting and lowering the load. It is essentially the forklift's "lifting arm." It works in tandem with the forks, and its design dictates the maximum lifting height of the truck.

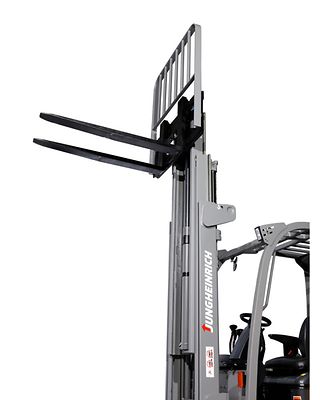

5. Forks
The forks are the two metal tines, also known as tynes, that are the most recognizable part of the forklift. They are the actual components that make contact with and lift the load.

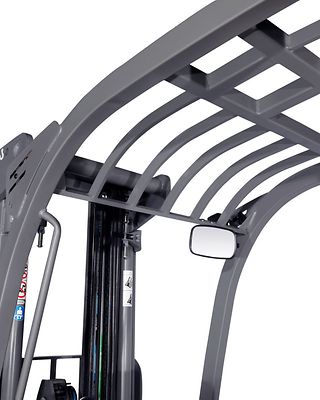

6. Overhead Guard
An overhead guard is a crucial part of a forklift's cabin, designed to protect the operator's head from falling objects. It's typically constructed from robust steel to withstand the impact of items that might fall from racks during operation. Beyond providing head protection, the guard must be designed to ensure the operator has a clear and unobstructed view.

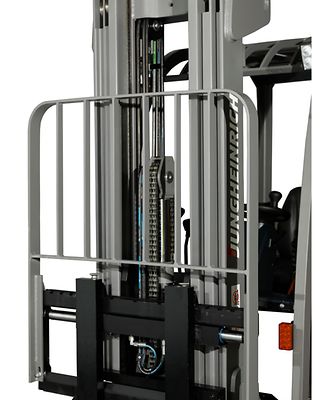

7. Load guard
A load backrest extension, also known as a load guard, is a component attached to the fork carriage in front of a forklift. Its purpose is to prevent the load, particularly stacked pallets or loose items, from shifting or falling backward toward the operator during lifting and transport. This helps to maintain load stability and prevent accidents, especially when lifting loads to high racks.

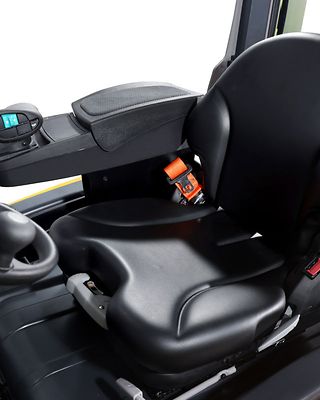

8. Driver’s seat & safety belt
The driver's seat and safety belt are critical for both operator safety and comfort during long hours of operation. Jungheinrich designs its seats with an ergonomic concept to provide comfort and reduce fatigue. The safety belt is adjustable to fit different operator sizes and positions, ensuring both convenience and safety are prioritized.

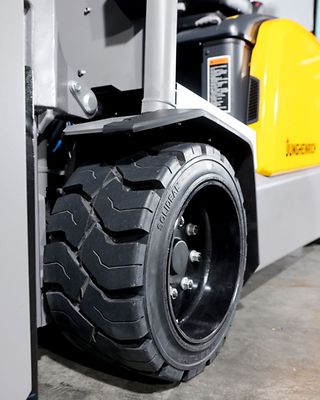

9. Tires
Tires are a fundamental safety component and must be checked before every operation. Maintaining them in good condition is crucial for safe driving. Understanding the different types of tires is important, as the correct type must be used for the operating environment. For example, solid tires are typically recommended for indoor use or within warehouses due to their durability and stability on smooth, hard surfaces.

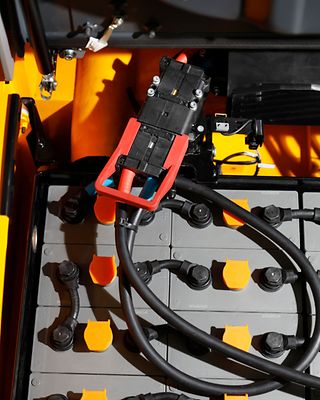

10. Forklift Battery
The forklift battery is the primary power source for an electric forklift, supplying energy to the electric motor to enable operation. The two main types of batteries are lead-acid and lithium-ion, each with distinct advantages. Choosing the right battery and understanding the proper maintenance procedures are essential for maximizing performance and efficiency.
Proper and consistent maintenance of each component is crucial for ensuring the forklift's longevity and efficient performance.
Regular and proper maintenance of each forklift component is essential for maximizing both performance and longevity. Using genuine parts from a trusted brand is also crucial. Sourcing high-quality, authentic components can significantly reduce the risk of malfunctions and accidents, ensuring the forklift operates reliably for a longer service life.
